Channel Drainage

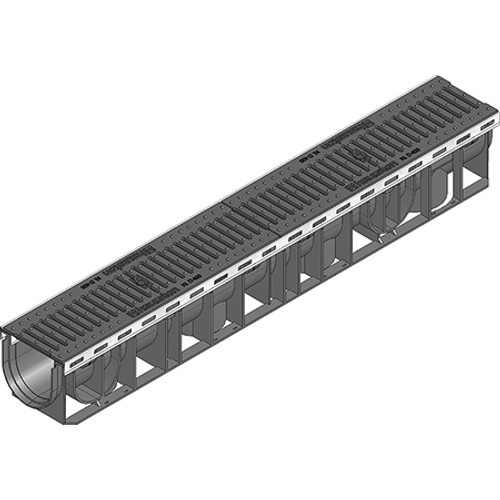

RECYFIX PLUS 100 channel drain with ductile iron heelsafe grating. D400 loading.

RECYFIX PLUS 100 Heelsafe DI Channel Drain D400 x 1m

HAU-40371
£64.63 (Inc. VAT)
£53.86 (Ex. VAT)

Delivery from £15 3-5 working days

Carbon neutral delivery from JDP vehicles

Return within 30 days for a full refund

Product Details

RECYFIX PLUS 100 Channel Drain is available in 1m lengths and is suitable up to D400 loading applications.

Not for use across the carriageway of highways and motorways in moving traffic.

Comes with heelsafe ductile iron grating with a 6mm slot width.

Feature and Benefits

  • Integrated metal profile for the grating support
  • Vertical connection to DN/OD 110mm sewer fittings
  • Channel body made from modified polypropylene (PP)
  • Galvanised steel edge angle housing
  • Relatively lightweight at just 11.13kg per channel

Suitable for

  • Pedestrian zones
  • School yards
  • Car parking facilities
  • Market squares
  • Flat roofs



Width: 147mm
Height: 135mm
Length: 1000mm
Drainage cross section: 92cm2
Intake cross section: 290cm2/m

C250/D400 loading application complies with EN 1433 standard.

SKU:
HAU-40371
Availability:
3-5 working days
