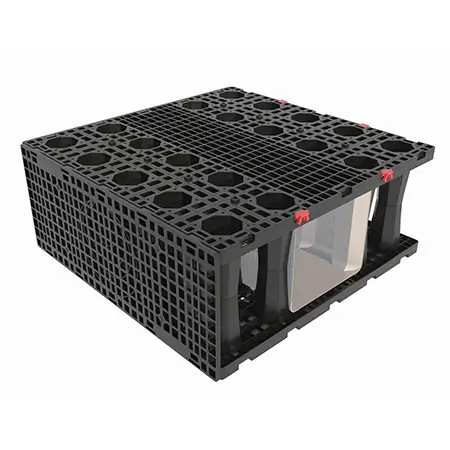

Rainbox C+
The Rainbox® C+ crate, manufactured by JDP’s Tessenderlo Group partner DYKA, is the next generation in stormwater management. Specifically designed for the modern construction industry, where sustainability is a growing priority, the Rainbox® C+ is made from 100% recycled Polypropylene and engineered for highly efficient pallet stacking. These heavy-duty crates are 100% recyclable and space-saving, both on-site and during transport, helping to reduce CO2 emissions.
Features & benefits include:
- 100% recycled PP heavy-duty crate
- Unique sedimentation channel
- HGV loading capable
- Efficient pallet stacking creates space savings on-site & during transport, reducing CO emissions
- 100% recyclable
Please Note: All images shown are used for illustration purposes only and may differ from the actual product supplied.
Unique Sedimentation Channel
The Rainbox® C+ optional sedimentation channel provides an easy and effective way to maintain the tank structure and ensure its longevity. It prevents unwanted debris, silt, or foreign objects from entering the cellular structure, containing it instead in the inspectable channel, making cleaning the tank significantly easier.
Technical Design
The Rainbox® C+ is not an "off the shelf" product. JDP's Technical Support team will provide hydraulic and structural calculations for each project to develop a customised design. Using the latest industry-standard software, the team offers a variety of bespoke solutions using pre-formatted in-house calculators. All proposed changes are supported by relevant calculations, documentation, and CAD drawings. Take a look at our Technical Support page for more information on what the team can do for you.
RAINBOX C+ Components
Each crate consists of two half-sections and up to four side plates, all designed to easily fit together through interconnecting parts and built-in clips. Each crate also comes with an optional sedimentation channel, constructed from four inserts that clip into the central run in each half crate section. Red connection clips are also provided to enable multiple crates to be connected together to form an attenuation or soakaway tank structure.

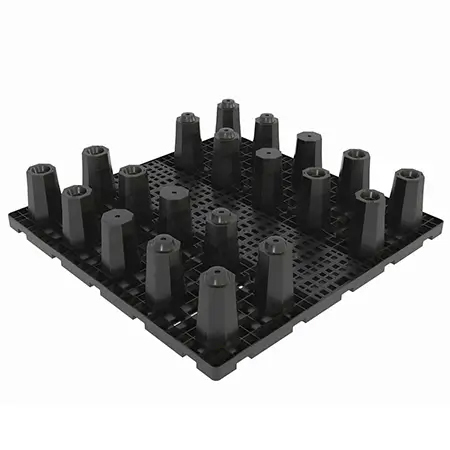

RAINBOX C+ HALF UNIT
Each RAINBOX C+ crate is made up of two crate modules that connect in bilateral symmetry and create a 95% Void Ratio.
- Product Number: 112020056913
- Material Type: PP
- Useful Volume: 105L
- Weight: 4.7kg
- Length: 800mm
- Width: 800mm
- Height: 165mm

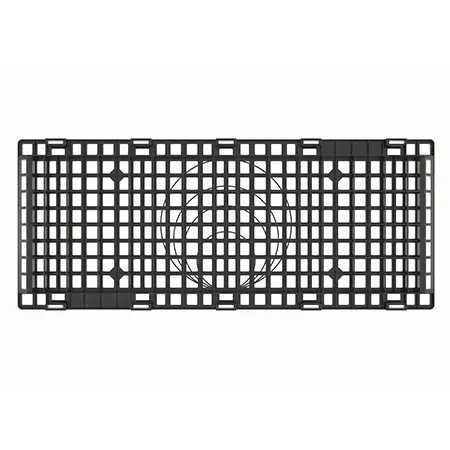

RAINBOX C+ SIDE PLATE
Used to close off any open sides of the tank structure and strengthen its mechanical resistance.
- Product Number: 112020056918
- Material Type: PP
- Connection: ø110 to ø250
- Weight: 1.55kg
- Length: 800mm
- Width: 330mm

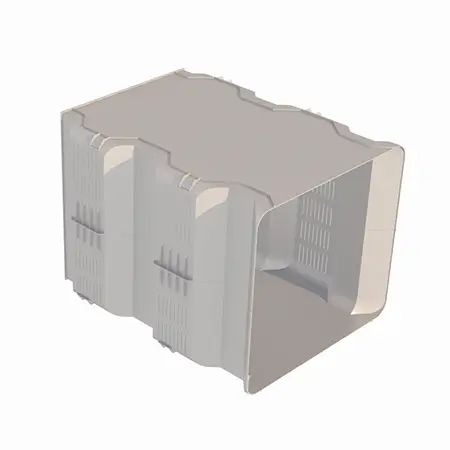

RAINBOX C+ SEDIMENTATION INSERT
Four inserts per crate are used to create a sedimentation channel along the inspectable run.
- Product Number: 112020057082
- Material Type: PP
- Size Limits: max ø250
- Weight: 0.289kg
- Packaging: Up to 4 per crate, as needed

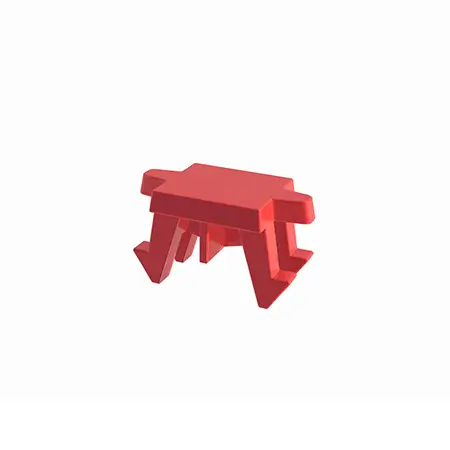

RAINBOX C+ CONNECTION CLIPS
Used to connect adjacent crates and maintain the structure’s cohesion over time.
- Product Number: 112020057081
- Material Type: PP
- Weight: 0.036kg
- Packaging: 50 pieces/bag
Rainbox C+ Attenuation Installation Video
The following video demonstrates how the Rainbox C+ stormwater solution can be used to build an attenuation system.
Rainbox C+ Soakaway Installation Video
The following video demonstrates how the Rainbox C+ stormwater solution can be used to build a soakaway system.
Rainbox C+ Specification Sheet
